90W系列电源适配器
90W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency············47HZ~63HZ
Line regulat…

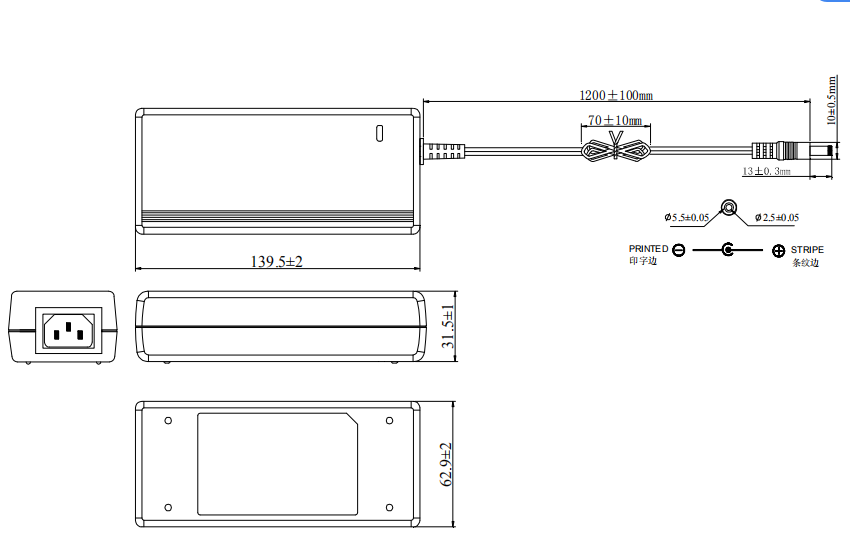

90W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency············47HZ~63HZ
Line regulation············1% Max
Load regulation············±5%
Temperature··············0~40℃
Storage temperature··········10℃~85℃
Relative Humidity···········10%~90%
Meet Efficiency Level ·········Level VI
Output Characteristics:
Input Voltage OutputCurren Output Power9.0~15.0VDC 0.01A~8.0A 96.0W MAX
15.1~20.0VDC 0.01~5.00A 96.0W MAX
20.1~26.0VDC 0.01-4.0A 96.0W MAX
26.1~50.0VDC 0.01-3.67A 96.0W MAX
50.1~56.0VDC 0.01-2.00A 112.0W MAX

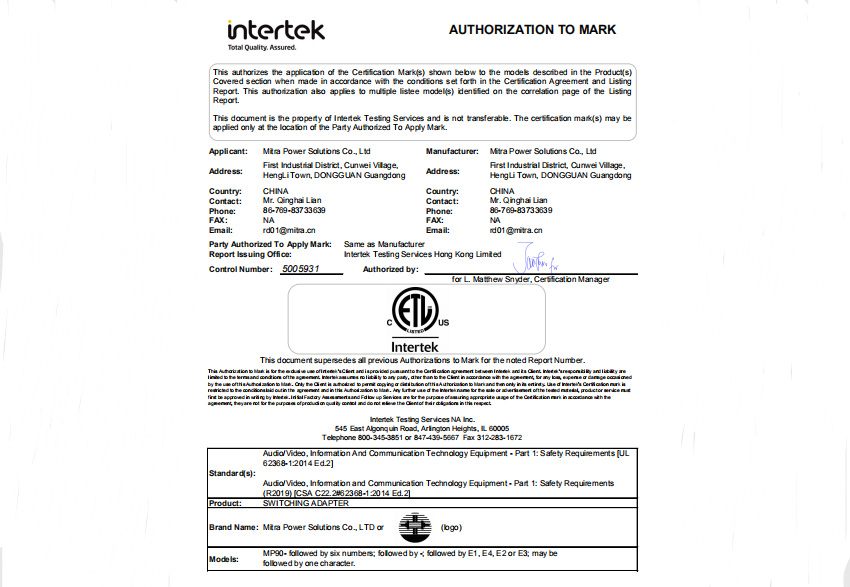

Safety
CB-------------IEC62368
ETL------------ETL62368
GS CE---------EN62368
