12W系列ETL60601 ETL电源适配器
12W~18W Switching Adapter Electronic properties Input Voltage···············90VAC~264VAC Input current···············0.5A Max Input Frequency···········47HZ~63HZ Line r…

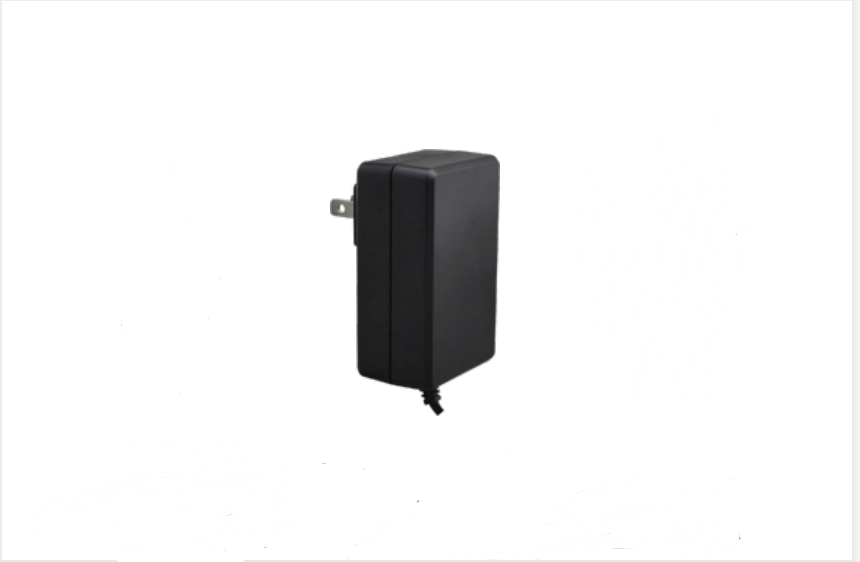

12W~18W Switching Adapter
Electronic properties
Input Voltage···············90VAC~264VAC
Input current···············0.5A Max
Input Frequency···········47HZ~63HZ
Line regulation·············1% Max
Load regulation············±5%
Temperature················0~40℃
Storage temperature·····10℃~70℃
Relative Humidity·········5%~90%
Meet Efficiency Level ···Level VI
Input Voltage OutputCurren Output Power
5.0VDC~8.9VDC 0.01A~3.0A 15W MAX
9.0VDC~14.9VDC 0.01A~2.0A 18W MAX
15.0VDC~18.9VDC 0.01A~1.2A 18W MAX
19.0VDC~24.0VDC 0.01A~0.75A 18W MAX
5.00VDC 0.01A~3A 15W MAX

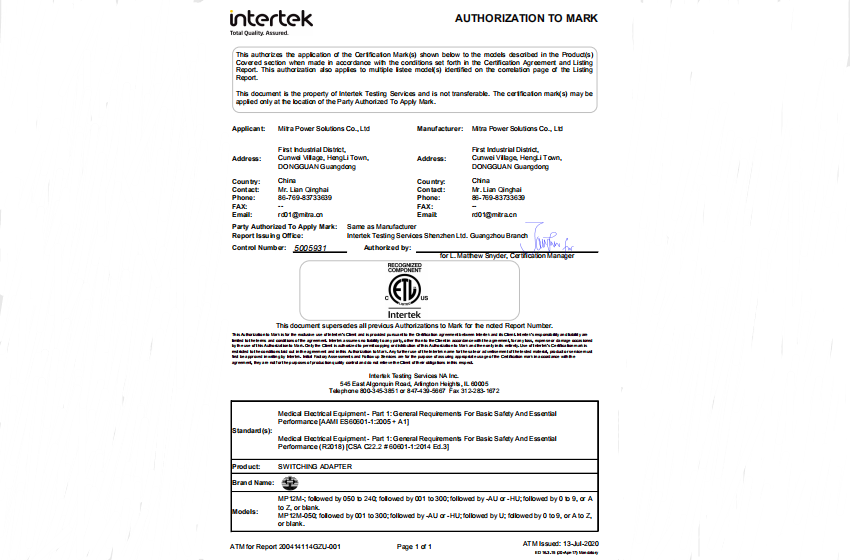

Safety
CB ------------IEC60601GS/CE---------IEC60601
ETL------------ETL60601
