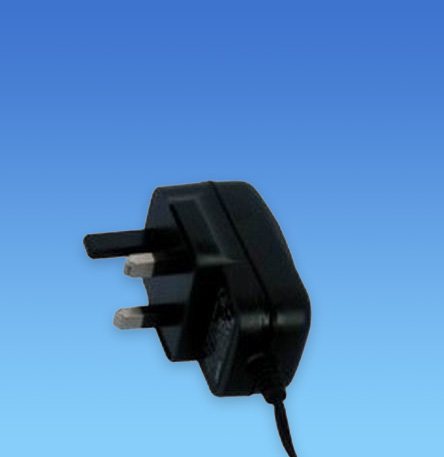

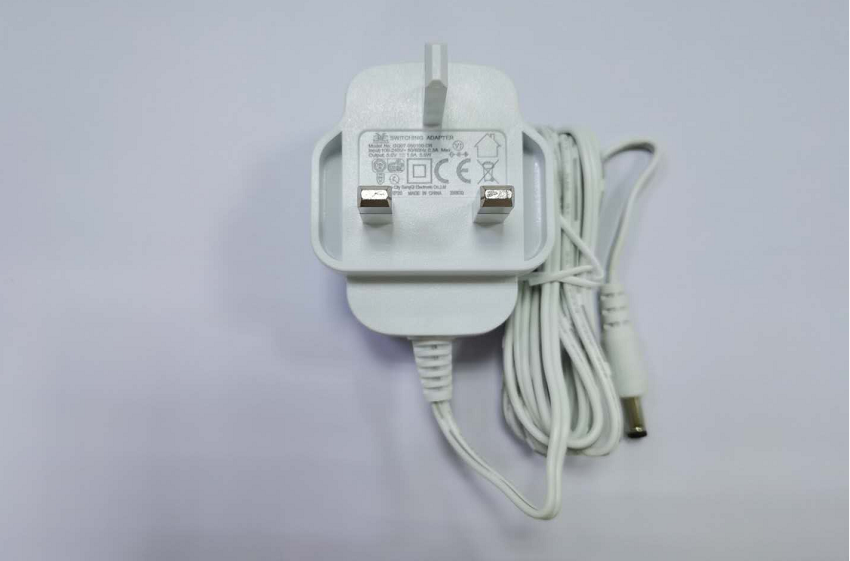

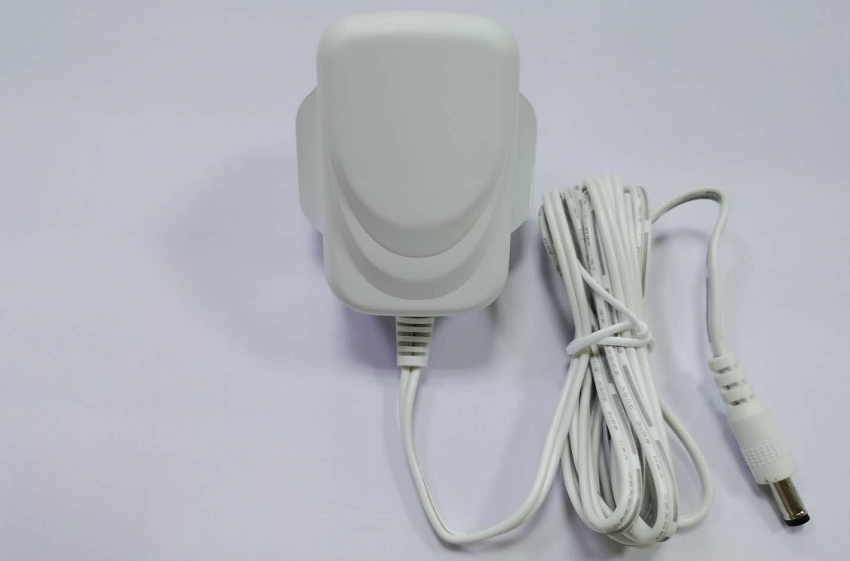

7W Series CE Switching Adapter
7W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency·········47HZ~63HZ
Line regulation·········…
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency·········47HZ~63HZ
Line regulation···········1% Max
Load regulation··········±5%
Temperature·············0~40℃
Storage temperature···10℃~70℃
Relative Humidity·······5%~90%
Meet Efficiency Level ··Level VI
Input Voltage OutputCurren Output Power
3.0VDC~24.0VDC 0.01A~1.5A 7.5W MAX

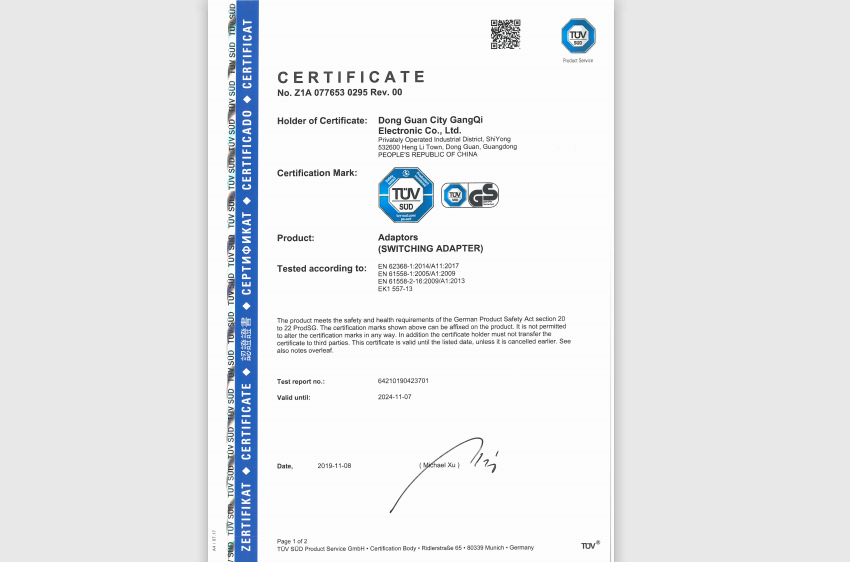

Safety
CB ------------IEC61558/IEC62368GS/CE---------IEC61558/IEC62368
SAA------------AS/NZS62368
ETL------------ETL1310/ETL62368
