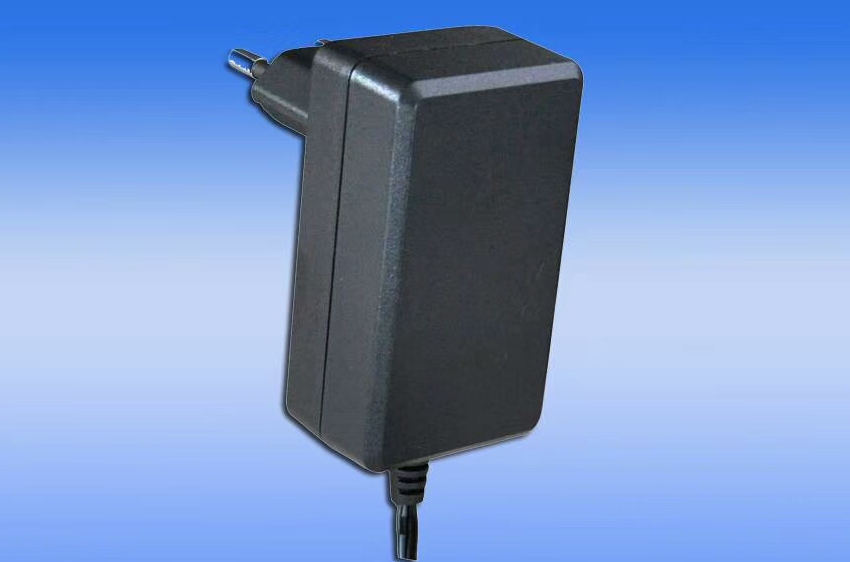

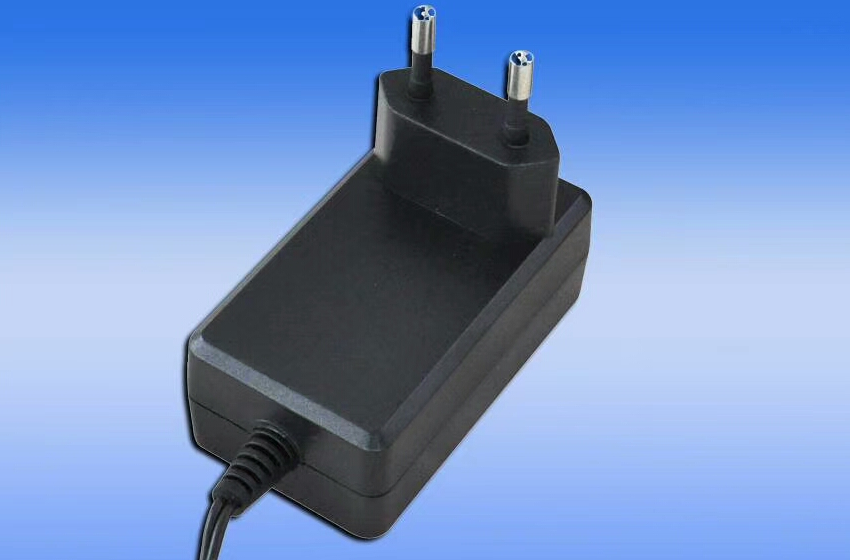

12W Series GS Switching Adapter
12W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency·········47HZ~63HZ
Line regulation··········…
12W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency·········47HZ~63HZ
Line regulation···········1% Max
Load regulation··········±5%
Temperature·············0~40℃
Storage temperature···10℃~70℃
Relative Humidity·······5%~90%
Meet Efficiency Level ··Level VI
Output Characteristics:
Input Voltage OutputCurren Output Power5VDC 0.01~2.1A 10.5W MAX
5.1~7.9VDC 0.01~3.0A 12W MAX
8~13VDC 0.01~1.3A 12W MAX
13.1~16.9VDC 0.01~0.8A 12W MAX18~24VDC 0.01~0.67A 12.06W MAX (MP12N)

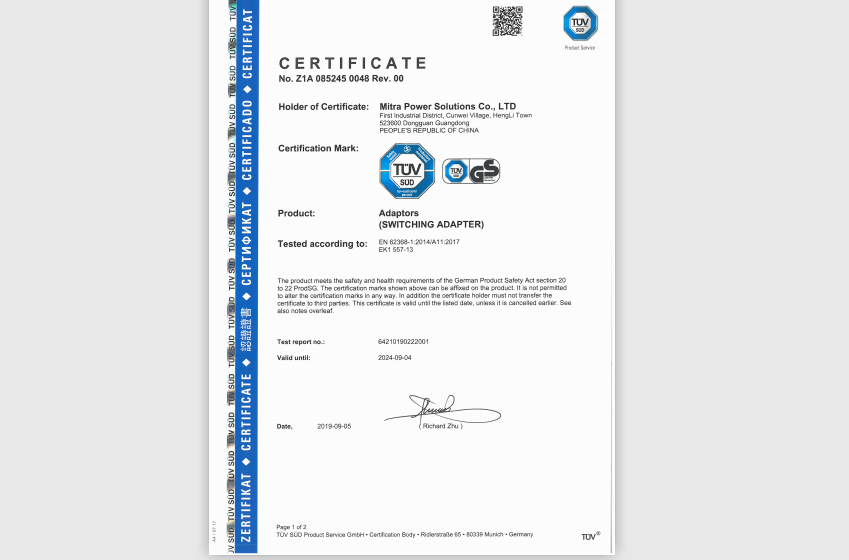

Safety
CB -------------IEC61558/IEC62368/IEC60335-1GS--------------IEC61558/IEC62368/IEC60335-1
SAA-------------AS/NZS61558
ETL-------------ETL1310/ETL62368
BSMI-----------CNS13438(95年版）、CNS14336-1(99年版)、符合CNS15663
CQC------------GB4706
PSB-------------IEC61558
ST---------------IEC61558
PSE-------------J61558
