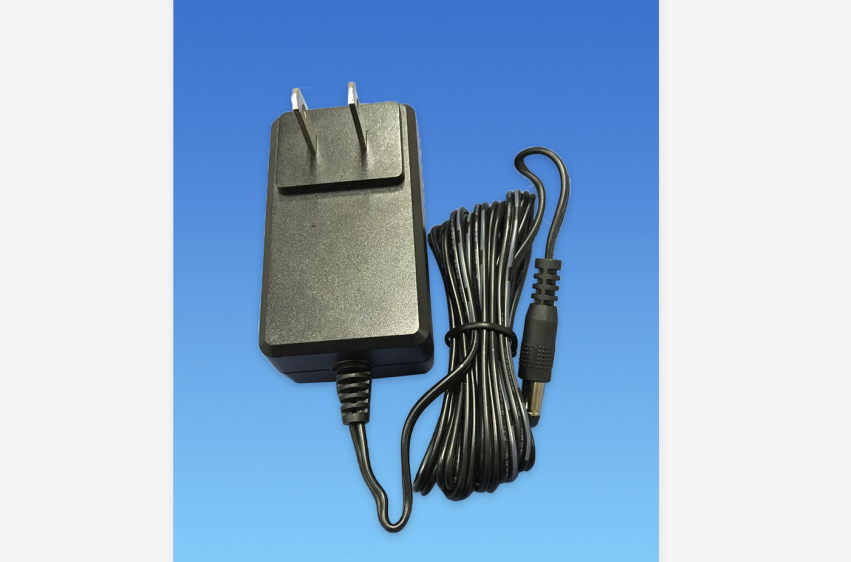

18W Series ETL Switching Adapter
18W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency·········47HZ~63HZ
Line regulation··…
18W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency·········47HZ~63HZ
Line regulation···········1% Max
Load regulation··········±5%
Temperature·············0~40℃
Storage temperature···10℃~70℃
Relative Humidity·······5%~90%
Meet Efficiency Level ··Level VI
Output Characteristics:
Input Voltage OutputCurren Output Power5~8.9VDC 0.01~3.0A 15.0W MAX
9~36VDC 0.01~2.0A 18.0W MAX
19VDC 1.0A 19W MAX

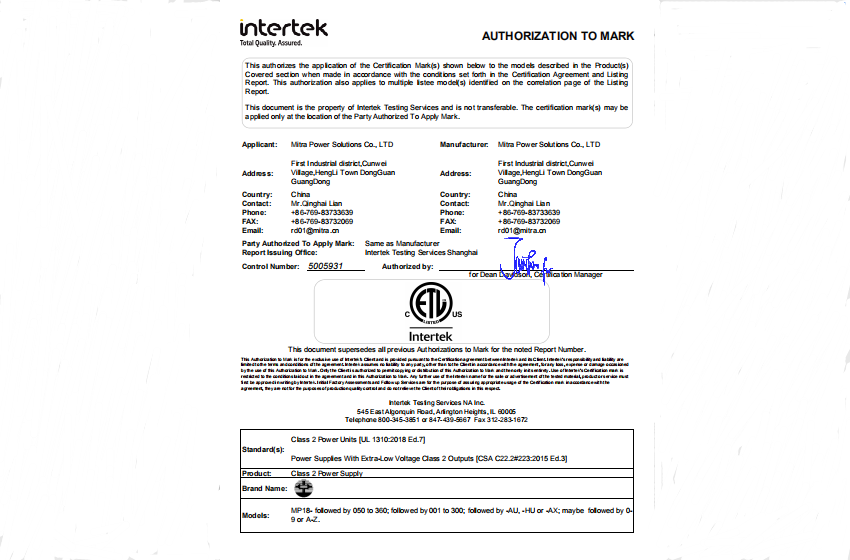

Safety
CB ------------IEC61558/IEC62368/IEC60335-1
GS-------------IEC61558/IEC62368/IEC60335-1
SAA------------AS/NZS61558
ETL-------------ETL1310/ETL62368
BSMI-----------CNS13438(95年版）、CNS14336-1(99年版)、符合CNS15663
CQC------------GB4706
PSE-------------J61558
