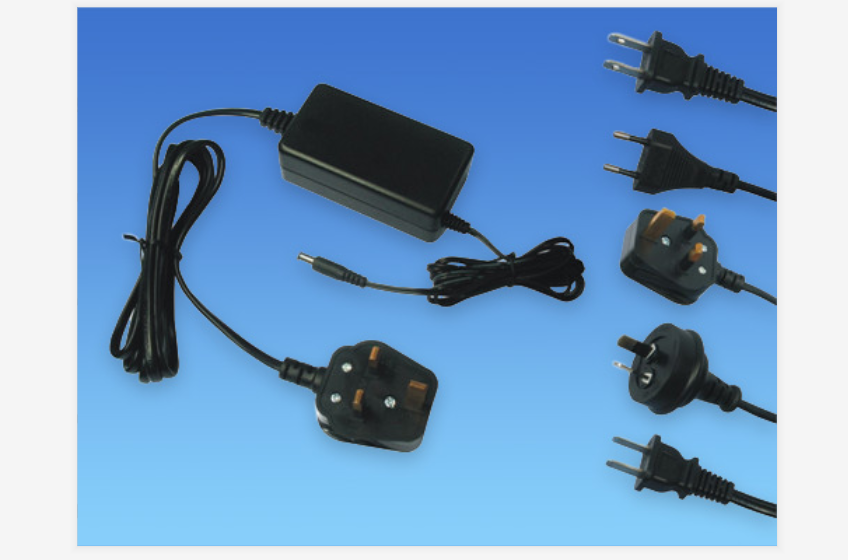

70W Series Switching Adapter
70W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency············47HZ~63HZ
Line regulatio…
70W Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············0.5A Max
Input Frequency············47HZ~63HZ
Line regulation············1% Max
Load regulation············±5%
Temperature··············0~40℃
Storage temperature··········10℃~85℃
Relative Humidity···········10%~90%
Meet Efficiency Level ·········Level VI
Output Characteristics:
Input Voltage OutputCurren Output Power8.0~15.0VDC 0.01A~5.0A 60.0W MAX
15.1~19.0VDC 0.01~3.42A 65.0W MAX
19.1~30.0VDC 0.01-3.0A 72.0W MAX
30.1~47.0VDC 0.01-2.0A 72.0W MAX
40.1.1~55.0VDC 0.01-1.50A 72.0W MAX

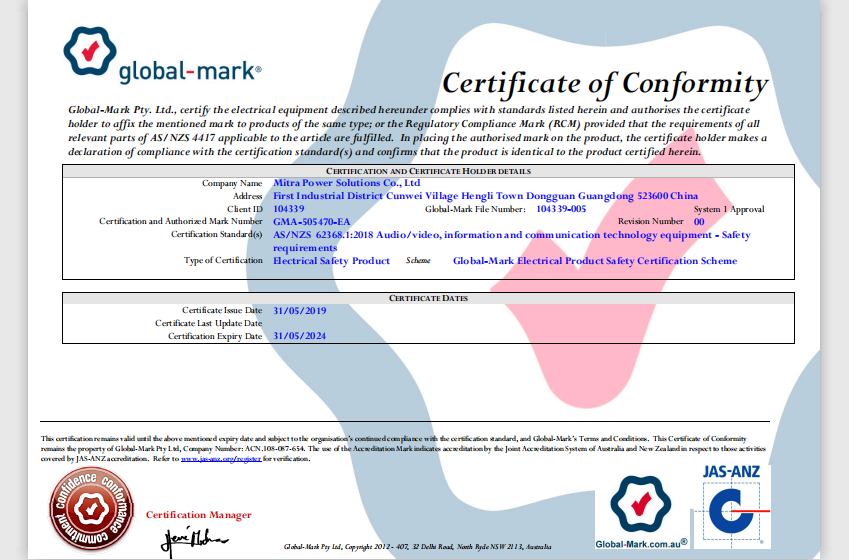

Safety
CB-------------IEC62368

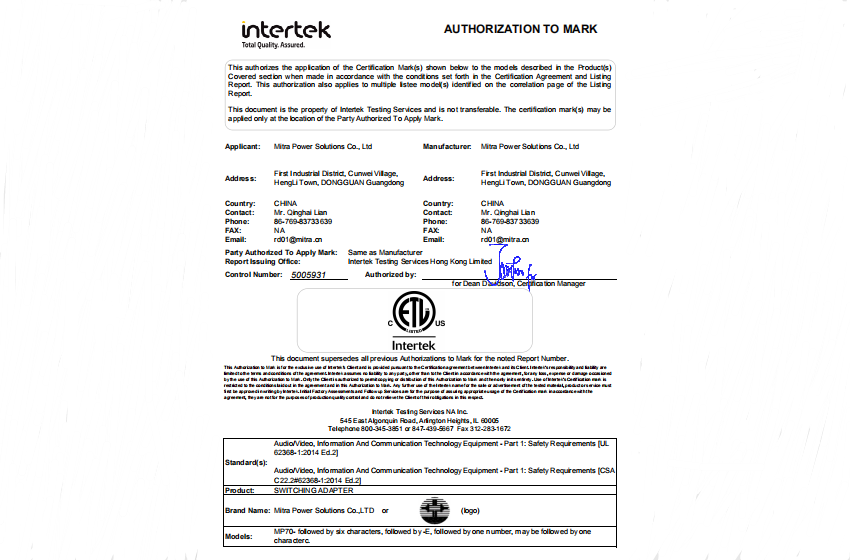

ETL------------ETL62368

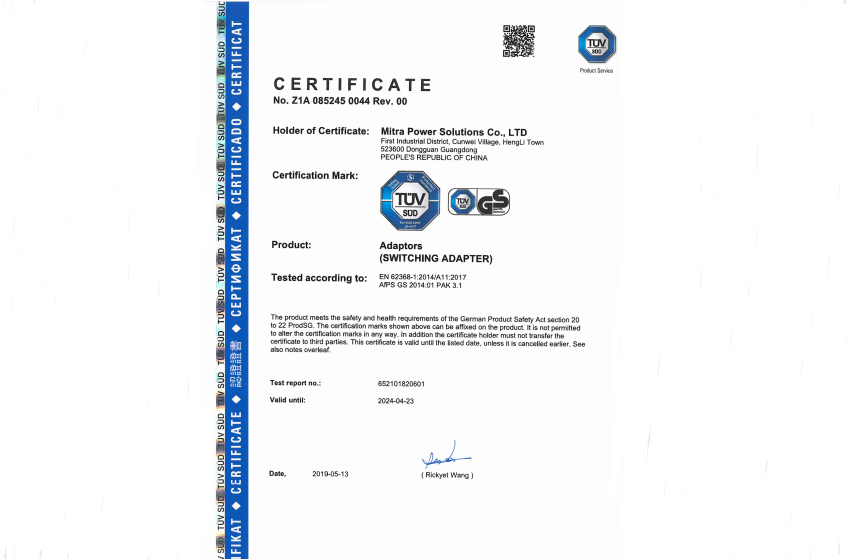

GS CE---------EN62368
PSE------------J62368
CCC------------GB4943
SAA------------AS/NZS62368
BSMI-----------CNS13438(95年版）、CNS14336-1(99年版)、符合CNS15663
