7.5W Power Adapter-Constant Voltage

product model: GQ07-xxxyyy-Wz series

GQ07-050yyy-wzU Series

Main functional parameters:

Input: 100-240Vac

Lightning strike: differential mode 2.5KV, common mode 4KV

Electrostatic: contact 8KV, air 15KV

Energy Efficiency: VI

Standby: 0.1W Max.

Ring temperature: 0 ℃ ~ 40 ℃

Protection: OCP,OVP

Waterproof: IP20

Certification: ETL62368-1,EN62368,J62368, IS13252(Part 1)2010,SAA62368,K60950,GB4943

Applications: routers, set-top boxes, gateways, monitors, computers, speakers and other IT/AV equipment

Product Details

Product Parameters & Main Performance Specifications

Project / Model	GQ07-xxxyyy-Wz, GQ07-xxxyyy-wzu	Note
Input Voltage (Rated)	100-240Vac
Input Voltage	90-264Vac
Input Frequency (Rated)	50/60Hz
Input Frequency (Range)	47-63Hz
Input Current (Max)	0.3A
Output Voltage (V DC)	5.0Vdc \| 3.0-6.0Vdc \| 6.1-12.0Vdc \| 12.1-16.0Vdc \| 16.1-24.0Vdc	Optional
Max. Output Current	0.01-1.50A \| 0.01-1.50A \| 0.01-1.20A \| 0.01-0.6A \| 0.01-0.46A	Optional
Max. Output Power	7.5W Max \| 7.5W Max \| 7.5W Max \| 7.5W Max \| 7.5W Max	Optional
Output Voltage Accuracy	±5%
Ripple & Noise	200mV Max
Operating Altitude	5000 meters and below
Form Factor	Wall mount
AC Plug Type	U.S., Europe, China, Australia, Korea, India

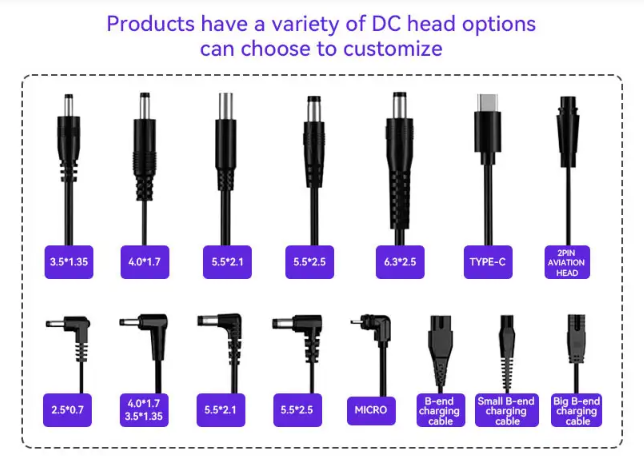

DC Output Type	DC line
Size（mm）	body reference size L:58 * W:37 * H:25.6mm
Safety Certificate	ETL,FCC,CE,SAA,PSE,CCC,BIS,KC
